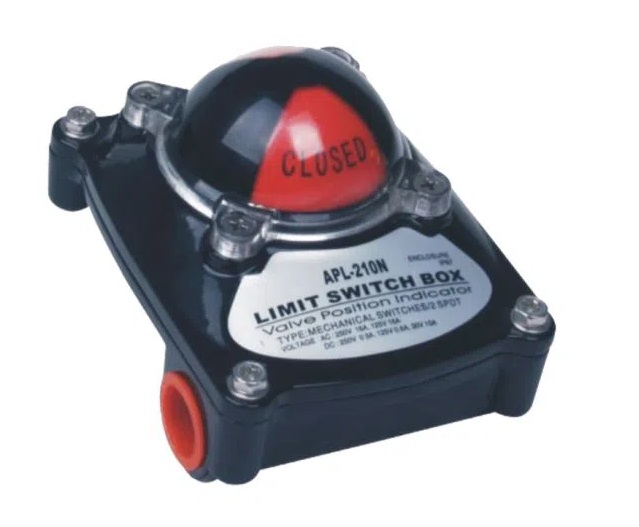

APL-210 Pneumatic Limit Switch Box
The valve limit switch box is a kind of field instrument used to detect the valve status in the automatic control system. It is used to output the open or closed position of the valve as a switching signal. The remote controller receives or samples the computer. After confirmation, the next step is performed. The product can also be used as an important valve interlock protection and remote alarm indication in the automatic control system
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

Apl-210 Pneumatic Limit Switch Box Features:

1.Protection Class: IP67
2.Position Indication: Close: Red, Open: Yellow
3.Ambient Temperature:-20ºC~+80ºC
4.Connection:2*NPT 1/2
5.Switch: Mechanical Switch*2
                Proximit Switch*2
6.Coating:Polyester (Black)
7.Axis: Standard axis (17mm)



Apl-210 Pneumatic Limit Switch Box Parameter:

Body case type

Protective ip67/NEMA 4&4X flameproof type

Cable interface

2NPT3/4’’

Ambient temperature

-20℃~80℃

End

8heads(0.08-2.5mm)

Position indicator

0~9°(90 automatic rotation )off:red;on:yellow

Switch

Mechanich switch,proximity switch

Coating

Chromate polyester powder coating(black)
