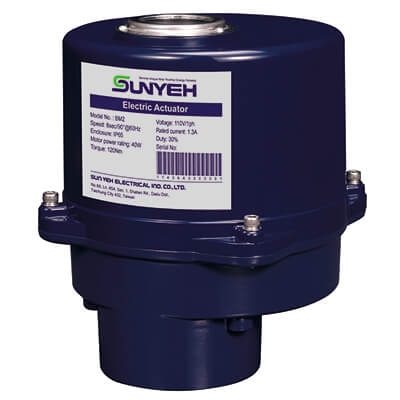

BM-2 ELECTRIC QUARTER TURN ACTUATORS

• Enclosure :

  • IP65 : Water-proof and dust-proof enclosure.
  • Material : Plastic cover (material: ABS Impact Resistance)

  Motor :

  • Insulation class F.
  • Built-in thermal protection prevents motor burning out.

  AC motor：125±5℃/257±9℉

  Duty Cycle :

  • BM-2：30％ duty cycle

  Working Conditions :

  • Ambient temperature：-30℃ to +65℃ / -22℉ to +149℉
  • The humidity：30％ to 95％

  Position Indicator :

  • All models have continuous mechanism position indicator on the top of actuator cover.

  Gear Train :

  • Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

  Conduit entrance :

  • Standard : 1/2" PS
  • Optional :  1/2”NPT or M20

  Various voltage :

  • AC 220/380/440V, 3-Phase
  • AC 110/220V, 1-Phase

  Working angle :

  • Standard : 0-90°
