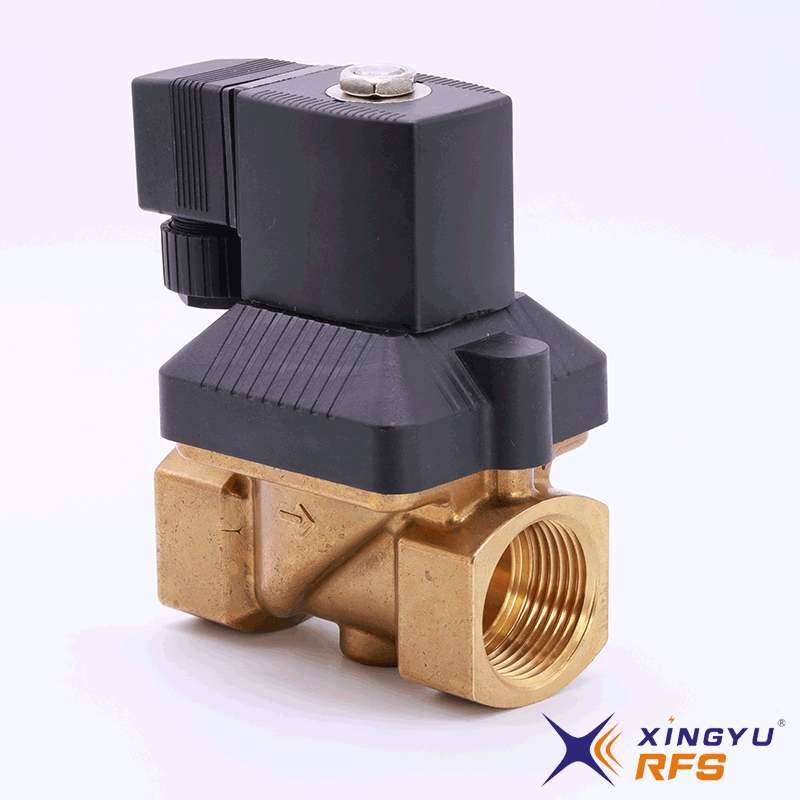

1" Solenoid Valve model: SB116-2025B

SB116 Servo Operation
2/2 Way Solenoid Valve. Normally closed,
Diaphragm Port sizes 1/4" to 2"

Compact and good appearance
Diaphragm structure , can work Start at 0.3 Bar
pressure Max 10 Bar
Coil made from H class wire , thermosesetting plastic
encapsulating
Reach IP65 protection class witch plug
High reliability, long life

Ambient Tempreature -5oC + 80oC 220 : Direct acting
Medium Tempreature 0oC + 90oC : brass body
* Response times 0.5 - 1 seconds( depending on orifice and differential pressure )

ก่อนสั่งซื้อโปรดระบุบ แรงดันไฟฟ้าทุกครั้งก่อนการสั่งซื่อ 220VAC 110VAC 24VDC 12VDC
